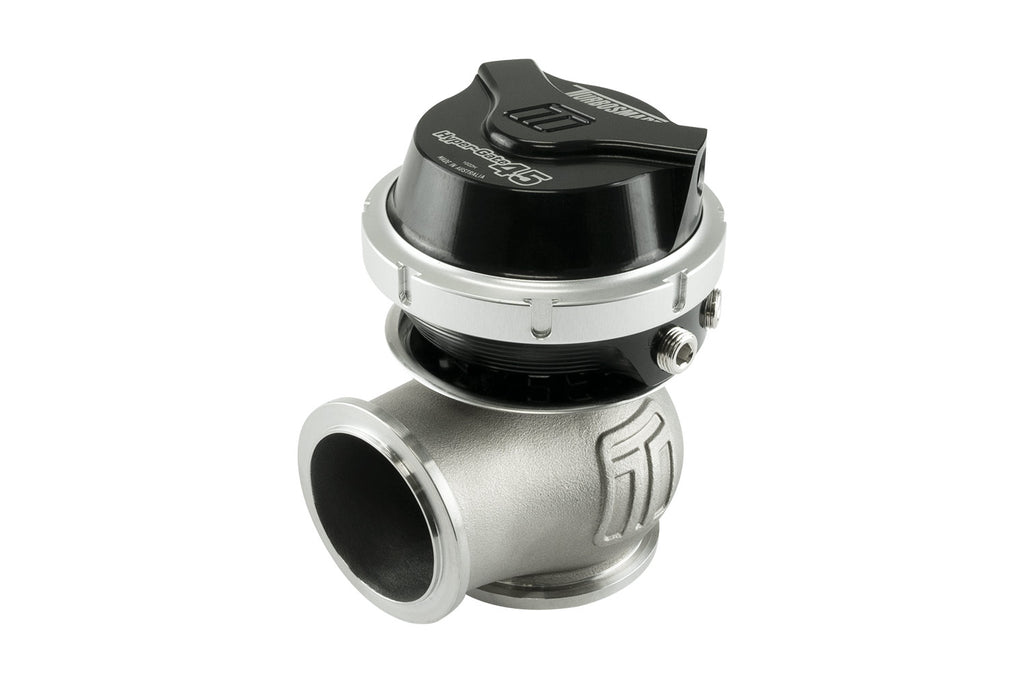

Turbosmart GenV HyperGate45 14psi - External Wastegate

Description

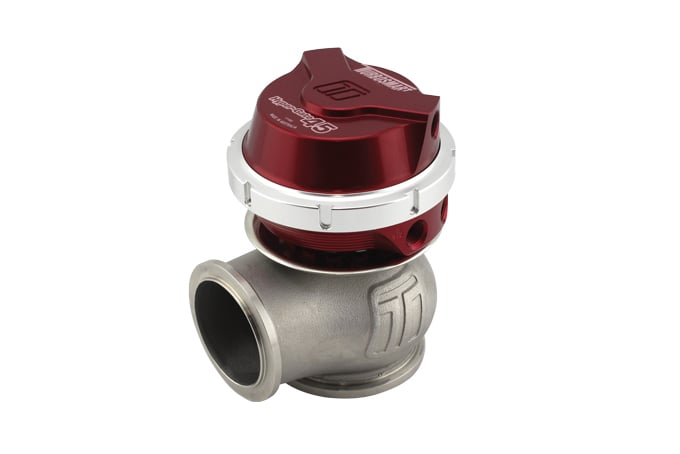

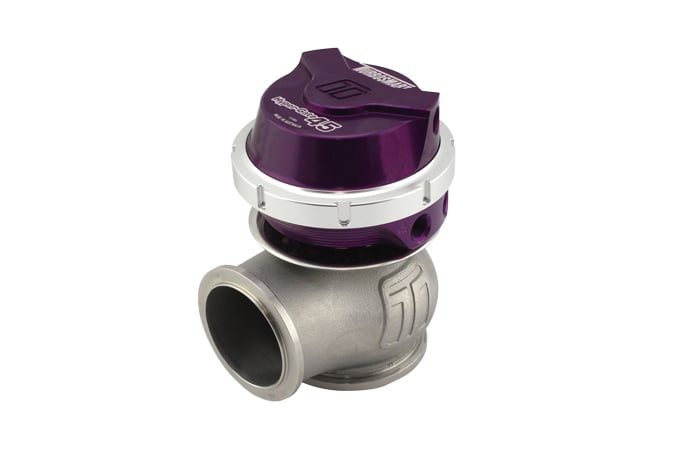

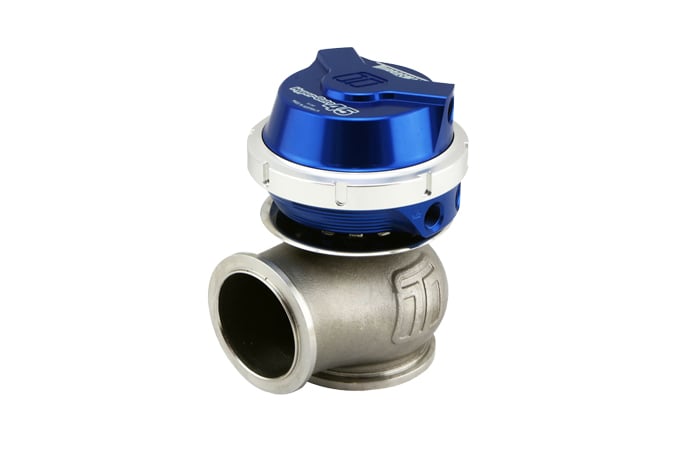

Turbosmart: TS-0553-1011 / 12 / 13 / 14.

The GenV WG45 HyperGate45 External Wastegate is a Motorsport-proven, cost-effective 45mm external wastegate – The highest flowing gate of its kind. The GenV provides extensive user configuration, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.

Features:

• Class Leading Thermal Performance.
• Class Leading CFD & Bench Validated Flow Performance.
• Class Leading Fatigue Resistance.
• Optional Liquid Actuator Cooling.
• Optional Position Sensor Available Separately.
• Rotatable / Clock-able Actuator Housing.
• Nitronic 60 Valve Guide & High Temp 347 SS Body.
• 17-7 PH Stainless Steel Springs.
• Strap Type V-band clamps.

Includes:

• GenV Wastegate unit.
• All Springs Included:
 3.5.7.14psi (14psi Inst. As per Description).
• Locking Collar Tool.
• GenV SS316 Valve seat.
• Strap Type V-Bands.
• Inlet & Outlet Weld Flanges.
• Hose Tail & Blank Fitting Kit.
• Turbosmart Decal.

Special Order options are not stocked and can take between 8-14 business days to arrive. Contact us prior to purchasing If your order is urgent.
